- 無段變速馬達
- 迴轉速可訂做
- 高功率，高扭力
- 10w~200w
A
GN

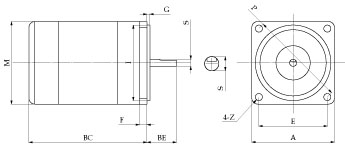

| 馬達機型號 | A | BC | BE | I | M | F | S | G | Z | E | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC |
05 |
60 |
95 |
24 |
54 |
63 |
6.4 |
6 |
2 |
4.5 |
49.5 |
|
06 |
70 |
100 |
25 |
64 |
70 |
6.4 |
6 |
2.5 |
6 |
58 |
|
|
07 |
80 |
109 |
25 |
73 |
70 |
6.5 |
8 |
2.5 |
6 |
66.5 |
|
|
08 |
90 |
118 |
32 |
83 |
80 |
8.4 |
10/12 |
2.3 |
7 |
73.6 |
|
|
10 |
90 |
138 |
32 |
83 |
80 |
8.4 |
10/12 |
2.3 |
7 |
73.6 |
|
|
12 |
90 |
161 |
32 |
83 |
90 |
10.5 |
12 |
2.8 |
8 |
73.6 |
|
| 馬達機型號 | 12/24V(90/180V) | 電流(A) | 轉速 | 輸出功率 | 重量(Kg) | 匹配齒箱 | |||
|---|---|---|---|---|---|---|---|---|---|
| 機種代號 | 出力軸心 | Watt | Kg-cm | ||||||
|
DC |
05 |
A |
12/24 |
1.4/0.7 |
1800 |
10 |
0.6 |
0.7 |
GN : 2GN |
|
2.8/1.4 |
3000 |
20 |
0.7 |
||||||
|
90 |
0.23 |
1800 |
10 |
0.6 |
|||||
|
0.37 |
3000 |
20 |
0.7 |
||||||
|
06 |
A |
12/24 |
2.2/1.1 |
1800 |
20 |
1.13 |
1.0 |
GN : 3GN |
|
|
4.0/2.0 |
3000 |
36 |
1.17 |
||||||
|
90/180 |
0.3/0.15 |
1800 |
20 |
1.13 |
|||||
|
0.53/0.26 |
3000 |
36 |
1.17 |
||||||
|
07 |
A |
12/24 |
3.3/1.65 |
1800 |
30 |
1.70 |
1.3 |
GN : 4GN |
|
|
6.6/3.3 |
3000 |
60 |
1.95 |
||||||
|
90/180 |
0.44/0.22 |
1800 |
30 |
1.70 |
1.7 |
||||
|
0.88/0.44 |
3000 |
60 |
1.95 |
||||||
|
08 |
A |
12/24 |
4.4/2.2 |
1800 |
40 |
2.26 |
1.7 |
GA :
渦輪 |
|
|
7.7/3.86 |
3000 |
70 |
2.27 |
||||||
|
90/180 |
0.59/0.29 |
1800 |
40 |
2.26 |
|||||
|
1.03/0.5 |
3000 |
70 |
2.27 |
||||||
|
10 |
A |
12/24 |
7.2/0.5 |
1800 |
65 |
3.68 |
2.2 |
GA :
渦輪 |
|
|
13.2/6.6 |
3000 |
120 |
3.89 |
||||||
|
90/180 |
0.96/0.48 |
1800 |
65 |
3.68 |
2.3 |
||||
|
1.77/0.88 |
3000 |
120 |
3.89 |
||||||
|
12 |
A |
12/24 |
11/5.5 |
1800 |
100 |
5.66 |
3.4 |
GU : 5GU |
|
|
22/11 |
3000 |
200 |
6.49 |
||||||
|
90/180 |
1.47/0.74 |
1800 |
100 |
5.66 |
3.5 |
||||
|
2.94/1.47 |
3000 |
200 |
6.49 |
||||||
